GHHY-2B-300.00/9
Machining axle ends

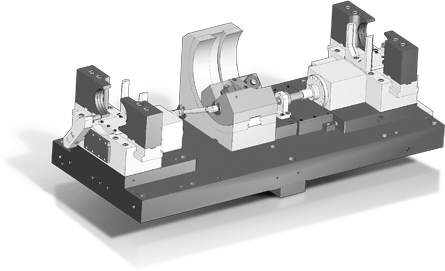

Two GHHY-2B-300.00/9 two-jaw Hydrozent chucks, each measuring 300 mm, are used in this fixture for machining axle ends.
The chucks can travel along the fixture. Hydraulic actuation is provided by side-mounted cylinders. The workpiece is aligned by the central unit, preliminary guides and swivelling aligners on the chucks. It is clamped with contoured jaws. The fixture has a connection for central lubrication.
Technical features
- 46 mm jaw stroke at a chuck size of 300 mm
- Force transmission by the wedge-hook principle
- Steel construction; all wear parts hardened and ground
- Side-mounted cylinder
- Additional swivelling aligner integrated into the chuck body
- One chuck can be moved and locked on the fixture
Technical data
| Type | GHHY, two-jaw chuck |
|---|---|
| Article no. | 300.050 |
| Actuation | Hydraulic, with integrated cylinder |
