Technical overview

Multiple-clamping fixtures can use any clamping principle. Depending on the requirements, individual elements are integrated directly into the base plate, or complete chucks are mounted on it and actuated through supply passages in the plate.

Variants

10 variants

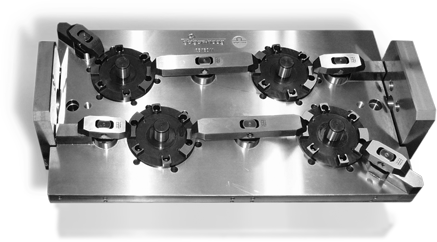

GHP-300.00/3 GHP multiple-clamping fixture with face clamping The photograph shows a hydraulically actuated multiple-clamping fixture. A workpiece support with a locating pin positions the workpiece, and swivel… Multiple clamping

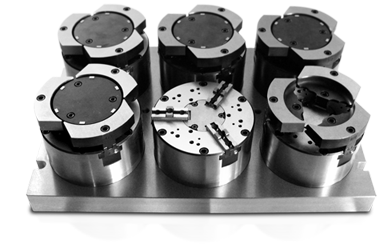

GHPPS-3B-125.60 GHPPS multiple-clamping fixture with six three-jaw chucks with inclined jaw guides This pneumatically actuated multiple-clamping fixture consists of six three-jaw chucks with inclined jaw guides. The enclosing jaws pull each workpiece… Multiple clamping

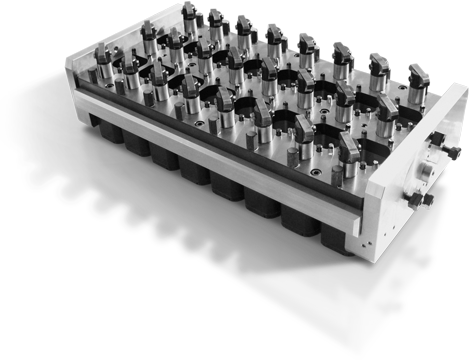

GHP-300.00/6 GHP multiple-clamping fixture with face clamping In this hydraulically actuated multiple-clamping fixture, locating pins position the workpiece and swivel clamps provide face clamping at two points. Multiple clamping

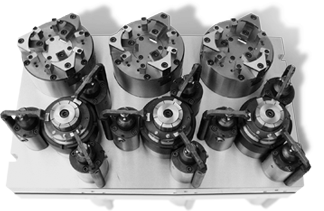

GHZP-300.00/1 GHZP multiple-clamping fixture with different clamping setups The photograph shows a hydraulically actuated multiple-clamping fixture with two clamping setups. Multiple clamping

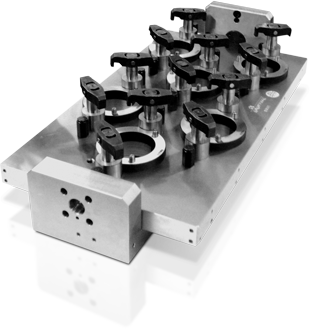

GHP-300.00/5 GHP, face-clamping fixture In this multiple-clamping fixture, a bore and locating pins position and align the workpiece. Two swivel clamps at each station… Multiple clamping

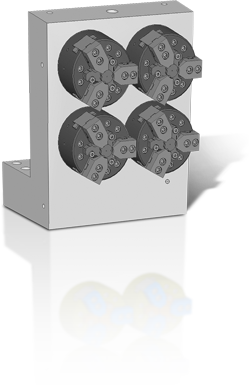

GHHY-90.00/K 3GHHY, multiple-clamping fixture with four three-jaw chucks This hydraulically actuated multiple-clamping fixture has four three-jaw chucks with integrated cylinders, workpiece supports with seating checks, clamping jaws with… Multiple clamping

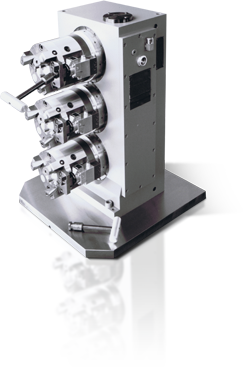

GHZHY-3B-160.00 GHZHY, multiple-clamping fixture with collet stud chucks The GHZHY-3B-160.00 is a hydraulically actuated multiple-clamping fixture with collet stud chucks. Workpieces clip into place under spring preload and… Hydraulic chucks

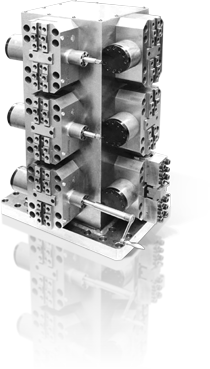

GHM-2B-200.00 GHHY, two-jaw chuck with spring pre-clamping This multiple-clamping fixture has three two-jaw chucks on each side. A hand crank provides coarse jaw-position adjustment. The workpiece is… Multiple clamping

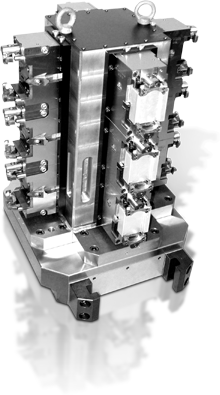

GHYP-180.00/Bl GHYP, multiple-clamping fixture This hydraulic multiple-clamping fixture has 12 clamping stations for machining ABS housings. The workpiece is inserted against a spring-loaded stop… Hydraulic chucks

GHHY-2x2B-400.00 GHHY, double-clamping chuck The GHHY-2x2B-400.00 is a hydraulic double-clamping fixture with an integrated cylinder. It can clamp workpieces of different sizes. The fixture… Hydraulic centering chucks

No suitable variant listed?

Many solutions are developed as variants of existing clamping tools. Send us the key data of your application.

Send technical inquiry
