Clamping Tools
Mechanical chucks
Technical overview
Mechanical clamping fixtures generate their clamping force through threads, toggle levers or eccentric cams. Their advantages are high clamping force and self-locking operation.
The workpiece is clamped manually or through a redirecting lever or threaded mechanism. These fixtures are mainly used where space constraints prevent a pneumatic or hydraulic supply, or where fixtures need to be changed frequently.
Variants
2 variants

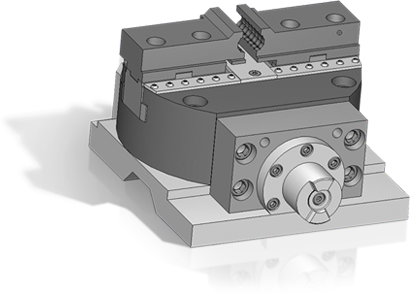

GH-2B-240.00/St
GH, two-jaw chuck
This mechanically actuated two-jaw chuck is driven by an electric clamping unit or hydraulic motor and controlled by torque-dependent switching.…

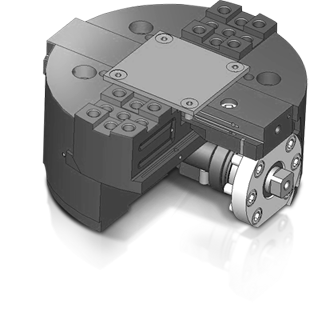

GHM-2B-150.00/2
GHM two-jaw chuck
This mechanically actuated two-jaw chuck is driven by an electric clamping unit or hydraulic motor and controlled by torque-dependent switching.…
No suitable variant listed?
Many solutions are developed as variants of existing clamping tools. Send us the key data of your application.
